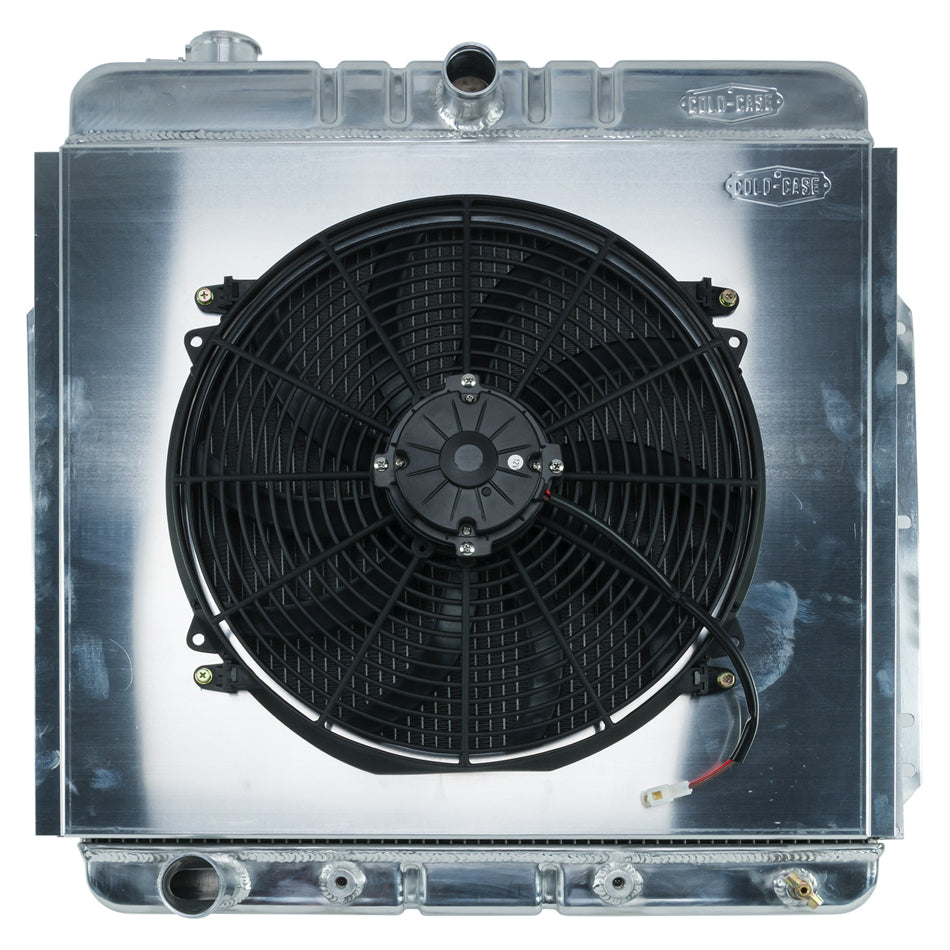

1953-1956 Ford F-100 Truck Aluminum Performance Radiator and 16 inch Fan Kit. For trucks with inline 6 or later V8. Will Not Work For Flathead. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- 2 rows of 1.25 inch tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/manual trans
- Direct fitment for 53-56 F100
- Old Part Number: RPE576AK
Radiator Specs
- Core Height 20.25 inch
- Core Width 22.75 inch
- Overall Height 25.5
- Overall Width 26.2 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
