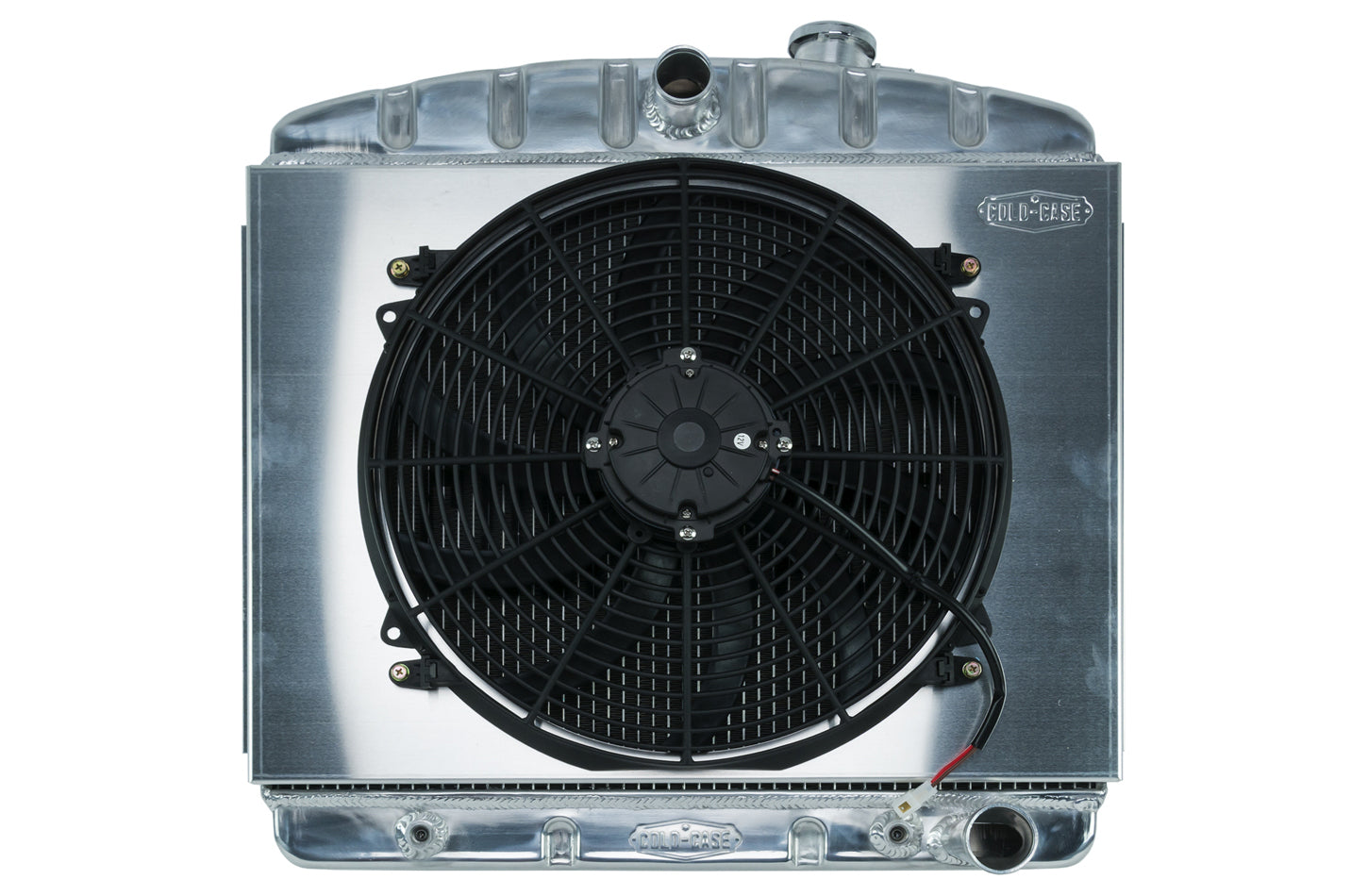

55-56 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit 6 Cyl (Front Mount). Straight 6 position cars for mount In Front of radiator support. Direct fit for 55-56 cars. 57 owners must use RPE563-7 for proper hood clearance. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/auto trans
- Direct fitment for 55-56 Chevy (Straight 6 position mount)
- Old Part Number: RPE563K
Radiator Specs
- Core Height 17 inch
- Core Width 21.5 inch
- Overall Height 23.5 To Cap
- Overall Width 23.5 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
