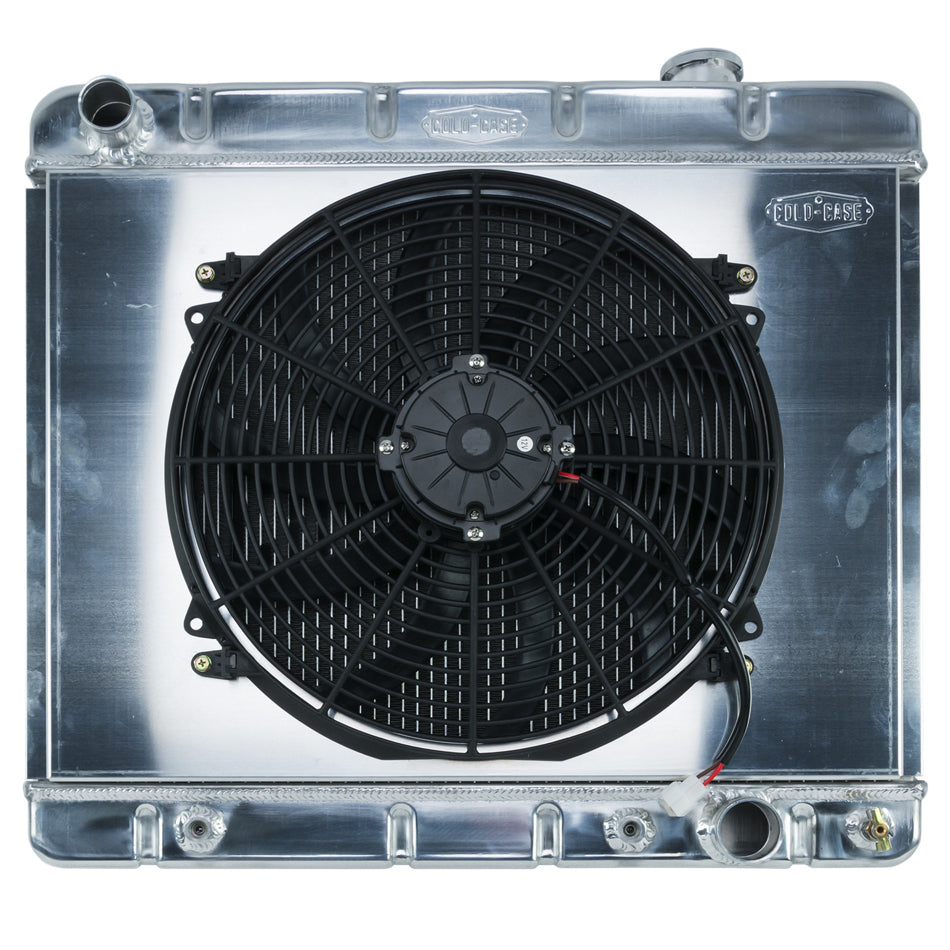

1963-1966 Chevy/GMC Pickup Truck Aluminum Performance Radiator and 16 inch fan kit. For trucks with original 3 core mounts. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 63-66 GM Truck
- Old Part Number: RPE55AK
Radiator Specs
- Core Height 17.4 inch
- Core Width 22.75 inch
- Overall Height 22.5 inch
- Overall Width 24.5 inch
- Overall Thickness 6 inch
- Upper Hose
- Lower Hose
- Tubes (2) 1.25 inch Tubes
