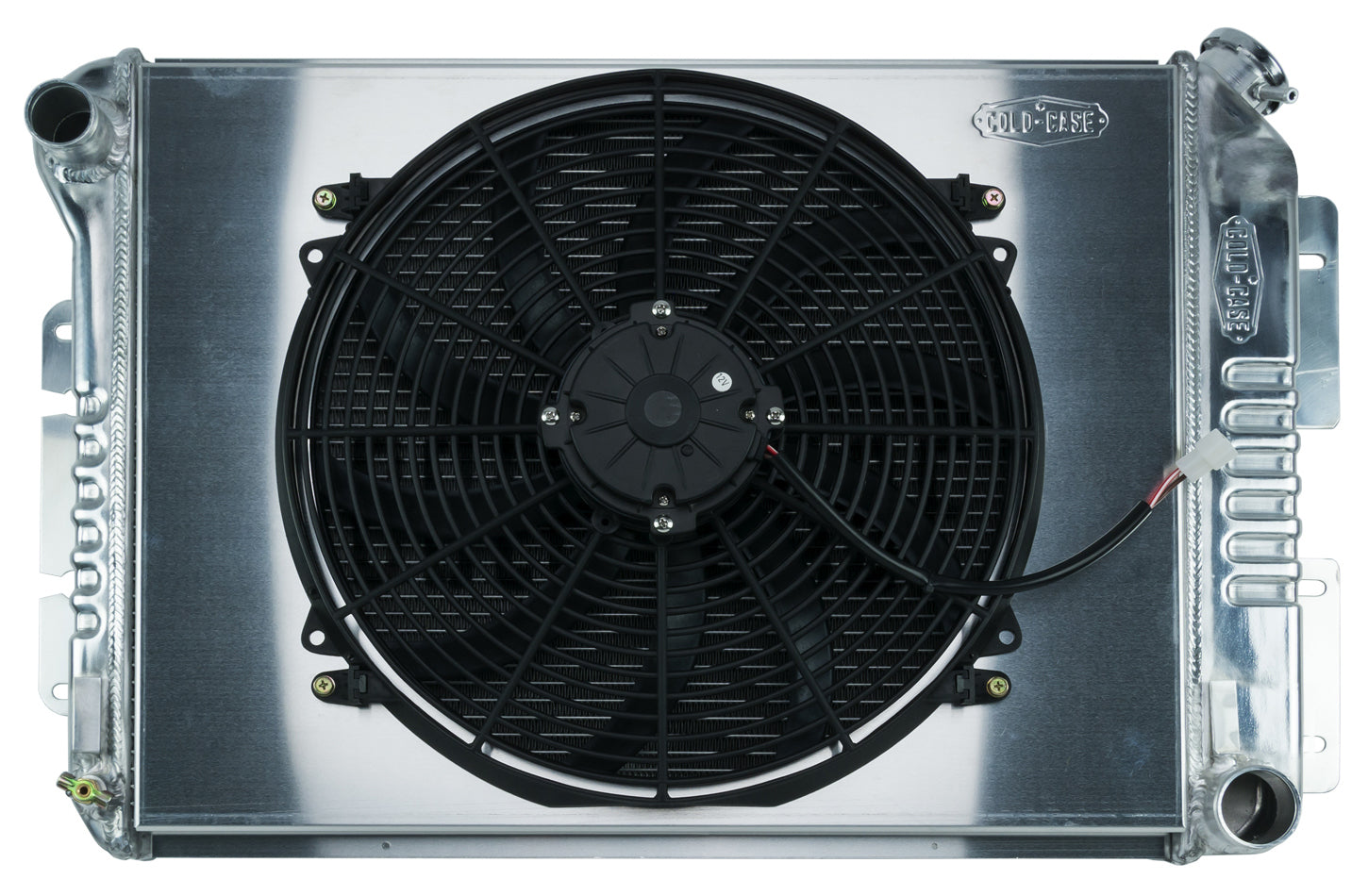

67-69 Camaro Big Block / Firebird Manual Transmission Aluminum Radiator And 16 Inch Fan Kit. MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
67-69 Firebird
67-69 Camaro
68-71 Nova w/ bracket mount
Details:
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Manual trans
- Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
- Old Part Number: RFE11LK
Radiator Specs
- Core Height:16.85 inch
- Core Width: 23 inch
- Overall Height: 18.5 inch
- Overall Width:27.5 inch
- Overall Thickness: 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
