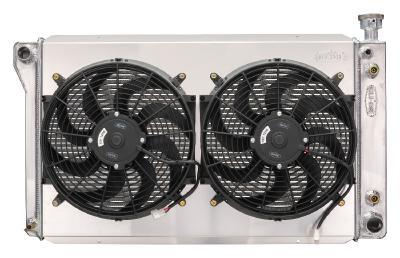

1988-1998 Chevrolet/GMC 1500 Series Truck Without Engine Oil Cooler Aluminum Performance Radiator. kit with shroud and dual 14 inch fans.
For most trucks with 5.0L/5.7L/7.4L engines and without engine oil cooler. For model with oil cooler, see GMT571A.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
- 100 percent TIG welded
- All Aluminum
- Polished tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Dual 14 inch fan and shroud kit pushing 3600CFM
Radiator Specs
- Core Height 17.65 inch
- Core Width 28.5 inch
- Overall Height 20.4 inch to cap
- Overall Width 33.85 inch
- Overall Thickness 6.75 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.25 inch
- Lower Hose 1.50 inch
